Wylstan Updated Furnace Control Board ICM282A, for HK42FZ013, HK42FZ004, New!

Wylstan Updated Furnace Control Board ICM282A, for HK42FZ013, HK42FZ004, New!

$42.89 USD
$42.89 USD
Sale Sold out

Wylstan Updated Furnace Control Board ICM282A, for HK42FZ013, HK42FZ004, HK42FZ007, HK42FZ01, Brand New!

Please note:  Connection cables are not included.  You can use the existing cables as long as they are not burnt.

Description

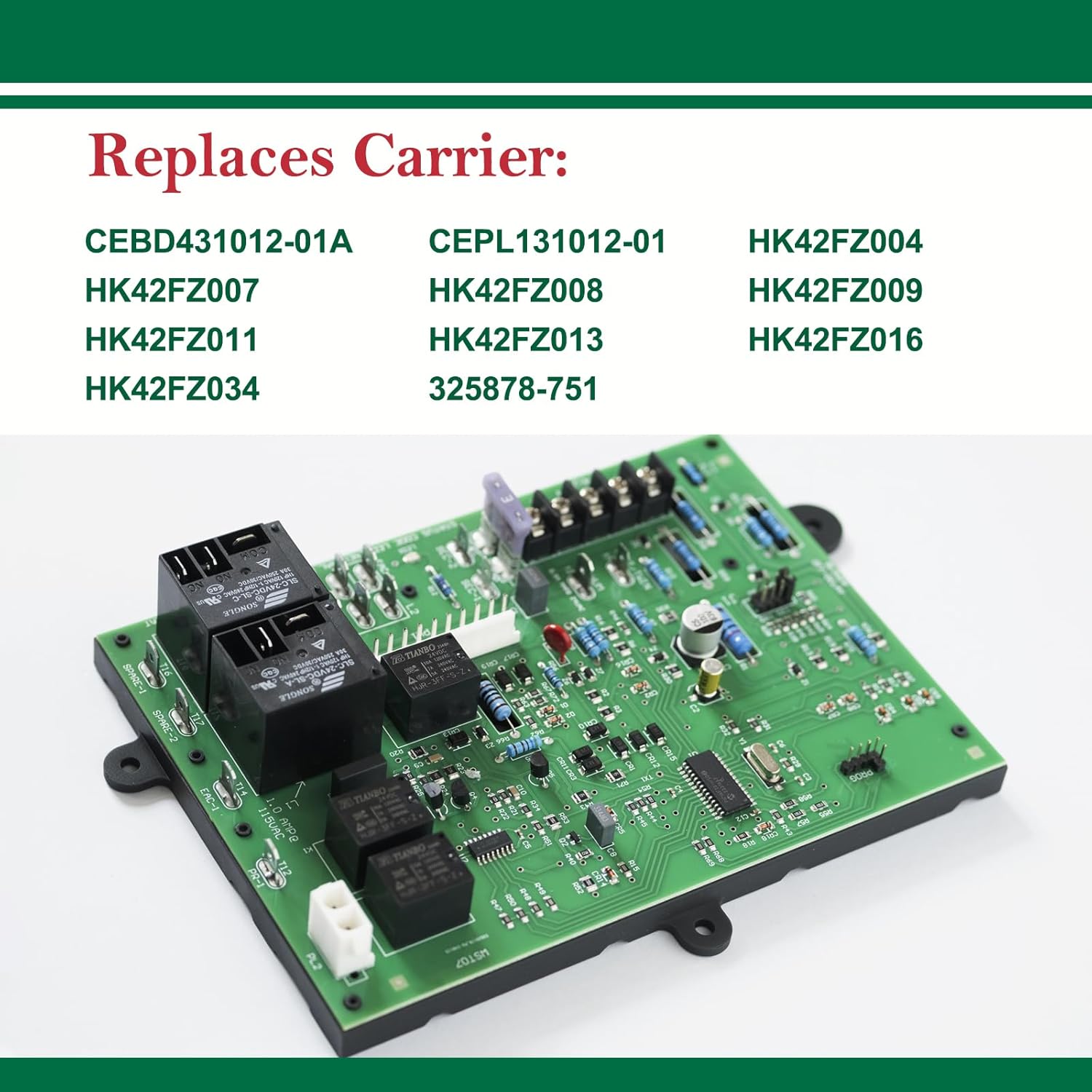

ICM Controls - Furnace Control OEM Replacement Control Board - Carrier HK42FZ-Series 325878-751

DETAILS:
  • Low cost replacement for Carrier HK42FZ004/007/008/009/011/013/016
  • Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
  • Microprocessor-based precision
  • Software for enhanced controls operation in counterflow and downflow furnace applications
  • Designed for 100% gas shutoff in case of ignition failure
  • Twinning compatible with another ICM282A board
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with 24 VAC standard thermostat
  • Diagnostic fault codes/LED to aid in troubleshooting
SPECIFICATIONS:
  • Line Voltage Range: 98 to 132 VAC @ 60Hz
  • Ignitor: 5A @ 120 VAC
  • Cool Blower: 30A, 2 HP, 240 VAC
  • Heat: 5A, 1/2 HP, 240 VAC
  • Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
  • Gas Valve:
